Knife row design, the knife row holder arranges the tools in a straight line, and the tool change is fast and accurate.
Save processing time and reduce maintenance costs.

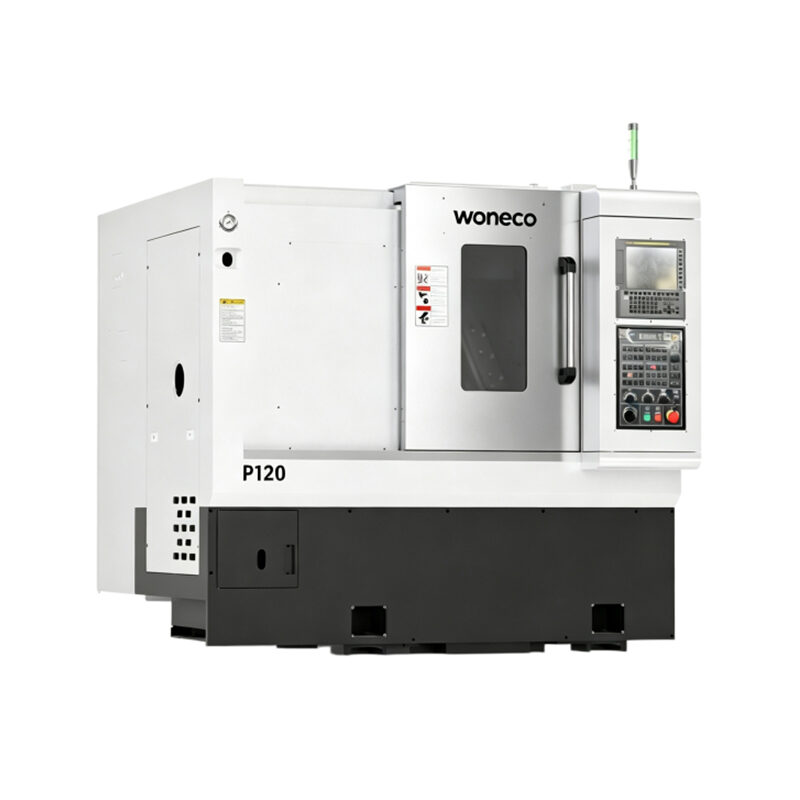

P120 Gang tool lathe
Knife row design, the knife row holder arranges the tools in a straight line, and the tool change is fast and accurate.
Save processing time and reduce maintenance costs.
Product Features
01
This machine is a horizontal CNC lathe with an integrated casting design for the base and bed. The bed rail surface is tilted at 45 degrees. It has a large load-bearing cross-section to ensure high-precision cutting. Structural features of high rigidity, low center of gravity, and close proximity to the spindle
02
Knife row design, the knife row holder is arranged in a straight line, and the tool change is fast and accurate, saving processing time and reducing maintenance costs.
03
High-precision unit spindle, high shaft radial rigidity, stable spindle thermal temperature rise, small thermal deformation, and high dynamic rotation accuracy
04
It can complete the cutting of internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, internal and external threads, chamfering and other processes for various parts.
05
Optional bar feeder & truss manipulator & joint manipulator realize “unmanned” automatic production
Specifications
| Maximum spin diameter on the saddle | Φ320mm |
| Maximum turning diameter | Φ300mm |
| Standard turning diameter | Φ120mm |
| Rotation diameter on carriage | Φ126mm |
| Maximum turning length | 300mm |
| Chuck size | 5′ |
| Bar capacity | Φ36mm |
| Spindle bearing model | 7014 |
| Spindle through aperture | Φ46mm |
| Spindle transmission mode | Direct drive |
| Spindle transmission ratio | 1:01 |
| Spindle maximum speed | 6000rpm |
| Spindle rated torque | 35.8Nm |
| X/Z axis maximum travel | 350/320mm |
| X/Z axis rapid feed | 30m/min |
| X/Z axis slide rail form | 30mm linear rail |
| X/Z axis ball screw diameter/pitch | Φ25/32mm/Pitch10 |
| X/Z axis positioning accuracy | 0.008mm/1000mm |
| X/Z axis repeat positioning accuracy | ≤0.005mm |
| Spindle motor power | 7.5kW |
| X-axis servo motor rated torque | 8.34Nm |
| Z-axis servo motor rated torque | 8.34Nm |
| Hydraulic station motor | 0.75kW |
| Pump motor | 0.55kW |
| Hot and cold switch | 300W |
| Standard controller | SYNTEC 22TA |
| Voltage/power requirements | 380V/15kVA |
| Hydraulic tank capacity | 30L |
| Machine weight | 2000kg |
| Tool magazine | 6 rows of tool holders |
| Square tool | ≤20mm |
| Round cutter | Φ25mm |
| Appearance size (L× W× H) | 2100×1600×1700mm |
